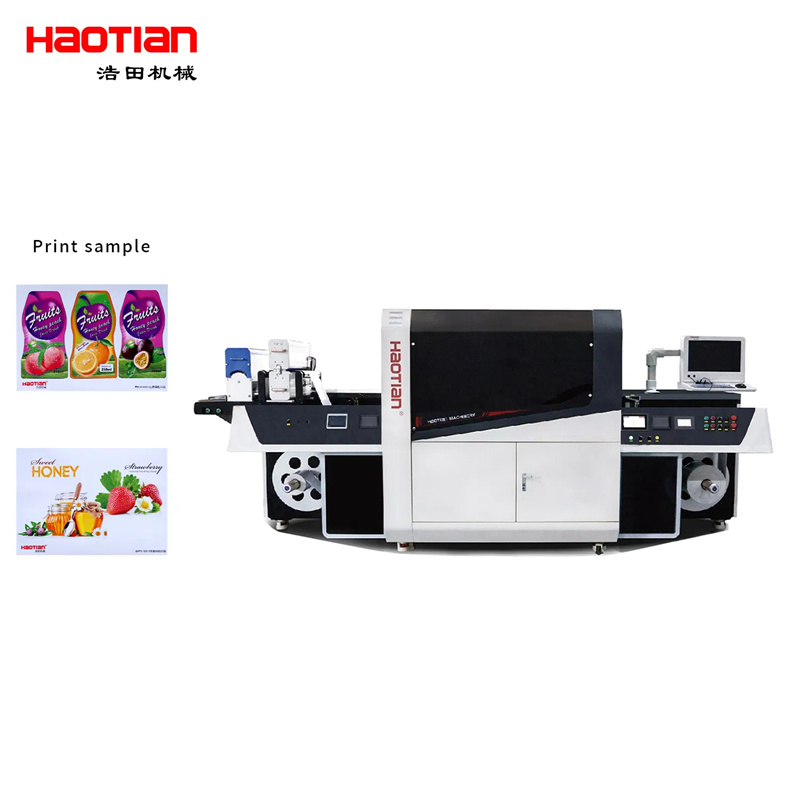

Name: Multi Color Label Flexo Printing Machine HTS-330-7C
Availability: InStock

Multi Color Label Flexo Printing Machine HTS-330-7C

The Multi Color Label Flexo Printing Machine HTS-330-7C combines advanced flexo technology with seven-color printing to achieve vibrant, high-precision labels. Designed for wider formats and flexible packaging, it supports stable roll-to-roll production, efficient curing, and consistent quality for industrial applications.

Item No :
HTS-330-7C
Order(MOQ) :
1
Product Origin :
Baiyun District, Guangzhou City, Guangdong Provinc
Weight :
3500kg

Product Details

The Flexo Digital Printing Machine HTS-330-7C is engineered for medium to wide format label production, offering a seven-color configuration that enhances visual impact and brand presentation. With flexible substrate compatibility and precise flexographic control, it ensures sharp text, smooth gradients, and consistent registration. Its efficient roll-to-roll workflow and durable design make it ideal for packaging, commercial labels, and high-volume printing demands.

Multi Color Label Flexo Printing Machine

Features

Expanded Color Reproduction – Advanced seven-color printing delivers precise gradations and striking visuals, supporting premium labels and high-value packaging applications.
High Efficiency & Low Waste – Optimized ink management and smart operation design reduce material consumption, lowering production costs while maintaining consistent output.
Enhanced Production Stability – Integrated control systems keep feeding, curing, and registration steady even in long-run, high-speed production environments.
Versatile Substrate Compatibility – Capable of printing on a wide range of label and packaging materials, ensuring adaptability to diverse industrial needs.
Optimized User Experience – Intelligent automation functions streamline operation, minimize downtime, and make maintenance easier, improving overall productivity.

Specification

Printing Technology	Single-Pass UV Inkjet Techonology With Kyocera Printhead	Air Source	0.6 ~ 0.8 MP
Resolution	Kyocera: 600600 & 6001200 DPI	Power Supply	3 Phase+N+PE/380VAC 50/60 HZ
Printing Speed(m/min)	5-50 m/min The maximum printing speed may vary by complexity of printing file	Supported File Formats	PDF,TIFF
Material Type	Coated or Uncoated Paper, Transparent or Non-Transparent Materials	Computer Hardware	Mainboard: HTS-Prime Z370-A. Graphics card: GTX1070-O8G
Winder Roll Diameter	Maximum 600 mm	Printing Substrate Thickness	0.045 -0.8mm For Roll to Roll material
Web Width	Minimum: 220 mm Maximum: 330 mm	Image Processor	RIP Budling: Synchronizes printing and RIP for large data files, saving work time.
Actual Printing Width	Minimum: 216 mm Maximum: 324 mm	Drying Method	Two-step curing process, each set of printheads undergoes pre-curing followed by overall UV curing. Printhead LED:700W/Lamp Final UV Curing: 10kwUV
Ink Type	UV/LED Curing Ink	Drying Method
Printing Color Group	4 -7 colors customized CMYK+W+O+V	Temperature Range	18 ~ 30°C
Mechanical dimension *(LWH)*	About 400020401850 mm Size may vary by customer's required configuration	Ink Storage Temperature	16 ~ 32°C
Machine Weight	About 3500 KG Weight may vary by customer's required configuration	Humidity Range	40 ~ 60°C
