Name: High Resolution Full Color Automatic Flexographic UV Digital Printer HTS-330-9C
Availability: InStock

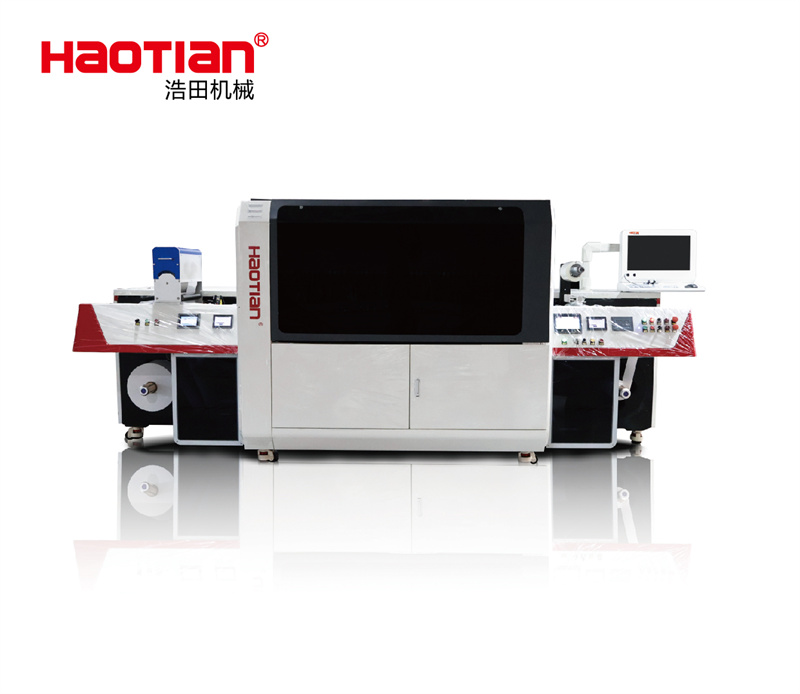

High Resolution Full Color Automatic Flexographic UV Digital Printer HTS-330-9C

The Full-Color Automatic Flexographic UV Digital Printer HTS-330-9C features single-pass UV inkjet technology, delivering up to 50 m/min at resolutions up to 600 × 1200 dpi, with nine-color printing capability for vivid output across both transparent and non-transparent label materials.

Item No :
HTS-330-9C
Order(MOQ) :
1
Product Origin :
Baiyun District, Guangzhou City, Guangdong Provinc
Weight :
3500kg

Product Details

The Automatic Flexographic UV Digital Printing Machine HTS-330-9C combines automatic flexo and high-resolution UV inkjet printing in a single-pass workflow—capable of up to 50 m/min performance at sharp 600 × 1200 dpi detail. Powered by a nine-color configuration, it reproduces vibrant, full-color imagery on a wide range of substrates without plate-making. The durable design supports roll-to-roll production, simplifies operation, and ensures consistent quality in demanding label and packaging environments.

FEATURES

Advanced Color Management – Supports complex color blending and layered printing for ultra-precise reproductions, achieving wider tonal range and accurate brand colors.

Optimized Ink Utilization – Intelligent ink distribution minimizes waste, reduces operational cost, and maintains consistent print density across multiple substrates.

Industrial-Grade Printing Precision – Equipped with high-speed piezoelectric nozzles and automated calibration, ensuring sharp text, fine details, and stable performance for extended production runs.

Flexible Substrate Compatibility – Capable of printing on diverse media, including specialty films and metallic foils, without pre-treatment, enhancing operational efficiency and reducing setup time.

Enhanced Production Reliability – Integrated automation, such as servo-controlled feeding, real-time tension adjustment, and modular maintenance features, guarantees smooth, uninterrupted roll-to-roll operations.

High-Throughput Efficiency – Engineered for fast, continuous output with precise registration control, improving productivity without compromising quality, suitable for commercial label and packaging applications.

Specification

Printing Technology	Single-Pass UV Inkjet Techonology With Kyocera Printhead	Air Source	0.6~ 0.8 MP
Resolution	600600 & 6001200 DPI	Power Supply	3 Phase + N+ PE/380VAC 50/60 HZ
Printing Speed (m/min)	5-50 m/min *The maximum printing speed may vary by complexity of printing file	of printing file Formats	PDF, TIFF
Material Type	Coated or Uncoated Paper, Transparent or Non-Transparent Materials	Computer Hardware	Mainboard: HTS-Prime Z370-A, Graphics card:GTX1070-O8G
Winder Roll Diameter	Maximum 600 mm	Printing Substrate Thickness	0.045 -0.8mm For Roll to Roll material
Web Width	Minimum: 220 mm Maximum: 330 mm	Image Processor	RIP Bundling: Synchronizes printing and RIP for large data files, saving worktime.
Actual Printing Width	Minimum: 216 mm Maximum: 324 mm	Drying Method	Two-step curing process, each set of printheads undergoes pre-curing followed by overall UV curing. Printhead LED:700W/Lamp. Final Uv Curing:10KW UV
Ink Type	LED Curing Ink	Drying Method
Printing Color Group	4-9 Unit, Colors: CMYK + Optional whiteOrange, Green, Violet, Varnish	Temperature Range	18 ~ 30°C
Machine Dimensions *(LWH)*	About 400020401850 mm Size may vary by customer's required configuration	Equipment Storage Temperature	16 ~ 32°C
Machine Weight	About 3500 KG Weight may vary by customer's required configuration	Ink Storage Temperature	40 ~ 60°C
