Name: High-speed Automatic Varnish & Foil Digital Printing Machine HGP-220
Availability: InStock

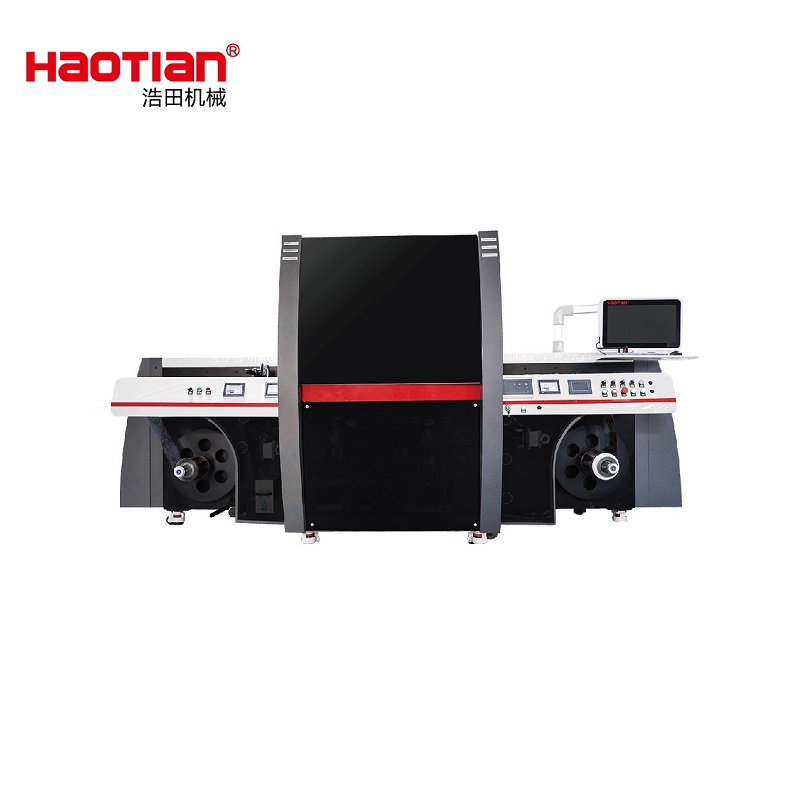

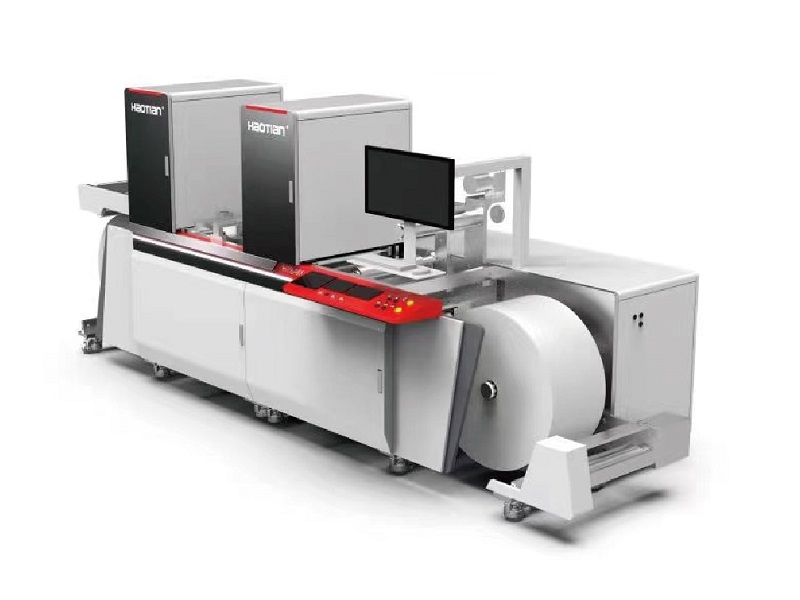

High-speed Automatic Varnish & Foil Digital Printing Machine HGP-220

The highly efficient and high-speed HGP-220 automatic varnish and cold foil digital press integrates UV inkjet technology with digital post-processing, enabling crisp cold foil and varnish effects. Utilizing single-pass inkjet and digitally controlled roller coating, it achieves high-speed and stable output, with a maximum print speed of 50 m/min. It is suitable for a variety of materials, including labels, packaging, and flexible films. Combining high precision and flexibility, this press enables fast order switching and reduces setup time, making it an ideal choice for small and medium-sized batches, variable content, and high-quality printing.

Item No :
HGP-220
Order(MOQ) :
1
Weight :
About 3.2 tons

Product Details

The HGP-220 varnish + cold foil digital press is a highly efficient printing machine designed for high-value-added products in the label, packaging, and advertising industries. Combining high speed, environmental friendliness, precision, and flexibility, it is particularly well-suited for modern printing companies seeking personalized and high-quality visual presentation. Its automated and intelligent design significantly improves production efficiency and reduces operating costs.

Industry application

1.Suitable for small batches label order and has the feature of multi-varieties printing in high speed.

2.Suitable for various materials,such as light membrane,Dim membrane,and Gold stamping,Silver stamping,laser,Varnish etc

3.Suitable for all kind of personalized customization customization,new product development and market business.

PEFORMANCE AND FEATURES

High Hot Stamping Precision - Adopting advanced digital inkjet technology, the placement and volume of each drop of ink are precisely controlled, achieving high-precision hot stamping results with crisp details and sharp edges.

Environmentally Friendly and Pollution-Free - No chemical solvents are used throughout the entire process, reducing harmful emissions and material waste, making the production process more environmentally friendly.

Flexible Customization - Hot stamping plates and films can be quickly replaced, supporting small-batch, diversified production and easily meeting the personalized needs of different customers.

High-Speed and Efficient Production - Stable high-speed printing performance enables rapid completion of large-volume orders, significantly shortening delivery cycles.

Multi-Media Compatibility - Compatible with a variety of materials, including paper, film, PVC, and PET, the printhead features a fully automatic cleaning function to effectively prevent clogging and ensure long-term stable operation.

Intelligent Testing - Equipped with a document-integrated testing system, the printer can perform print tests with a single click, monitor status in real time, and improve maintenance efficiency.

Specification

Printing Technology	UV inkjet technology, KYOCERA/EPSON/XAAR printheads	Air Source	0.6 ~ 0.8MP
Resolution	DPI 600x600dpi or 600x1200dpi DPl/rate 1200dpi 25m/min,2400dpi 12.5m/min	Power Supply	3 Phase + N + PE 380VAC 50/60 Hz
Printing Speed (m/min)	5-50 m/min *The maximum printing speed may vary by complexity of printing file	Supported File Formats	PDF，JPEG
Material Type	Coated or Uncoated Paper, Transparent or Non-Transparent Film	Computer Hardware	Mainboard: HTS-Prime Z370-A. Graphics card: GTX1070-O8G
Winder Roll Diameter	Maximum 650 mm	Printing Substrate Thickness	0.04 -0.8mm For Roll to Roll material
Web Width	250 mm/350 mm（Maximum）	Image Processor	RIP Budling: Synchronizes printing and RIP for large data files, saving work time.
Actual Printing Width	216 mm/324 mm（Maximum）	Drying Method	RIP bundle.and synchronous Printing and RIP for big data files are supported saving Rip time.
Ink Type	UV/LED Curing lnk	Drying Method
Printing Color Group	1-2 Unit, Color: Varnish Optional Flexo, Lamination Unit	Temperature Range	18 ~ 30°C
Mechanical dimension *(LWH)*	Approximately 4510mm X 2410mm X 2680mm	Ink Storage Temperature	16 ~ 32°C
Machine Weight	About 3.2 tons	Humidity Range	40 ~ 60°C
