Name: HGP-Varnish Machine for High-Precision Inkjet Printing Quality
Availability: InStock

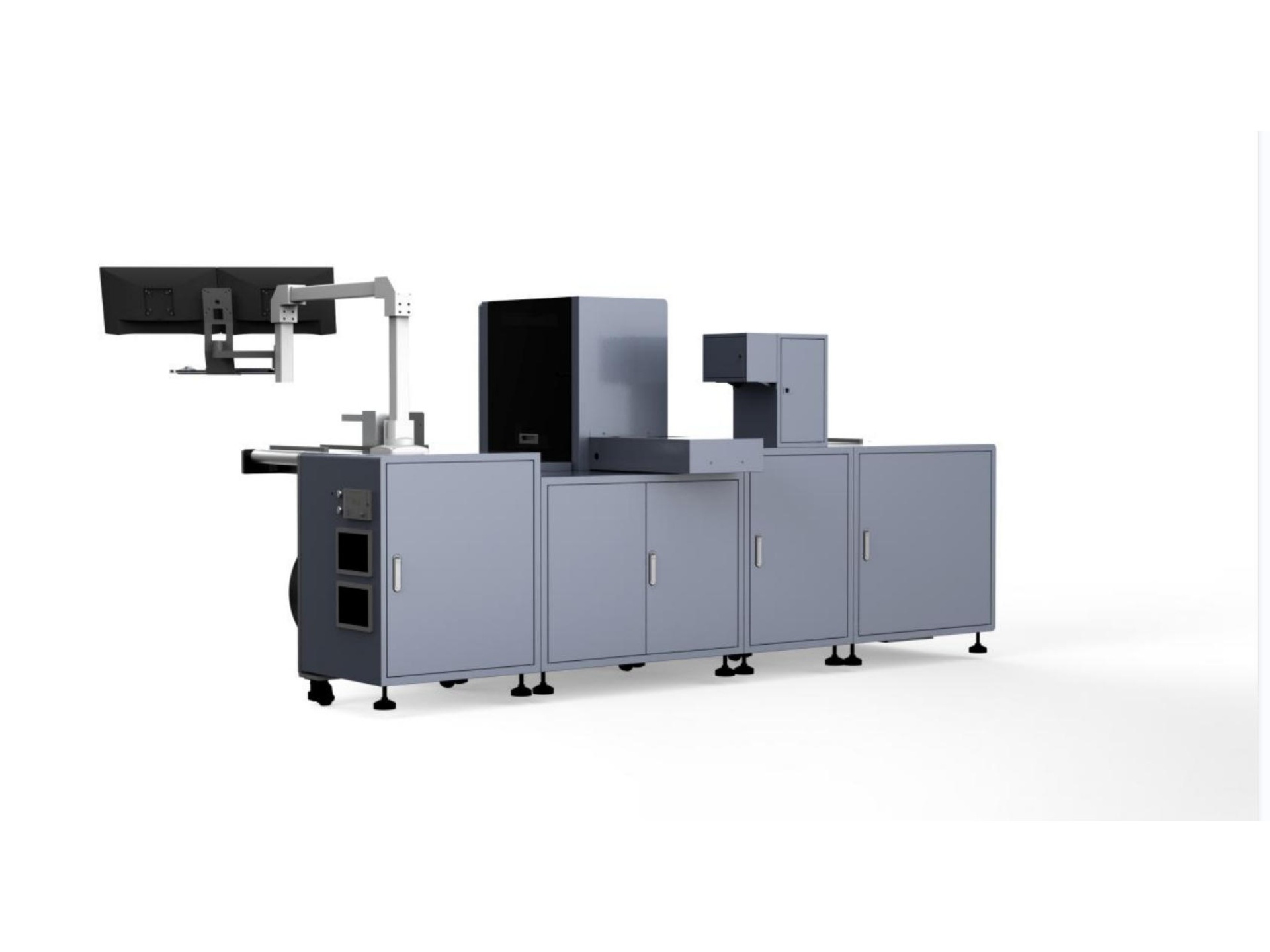

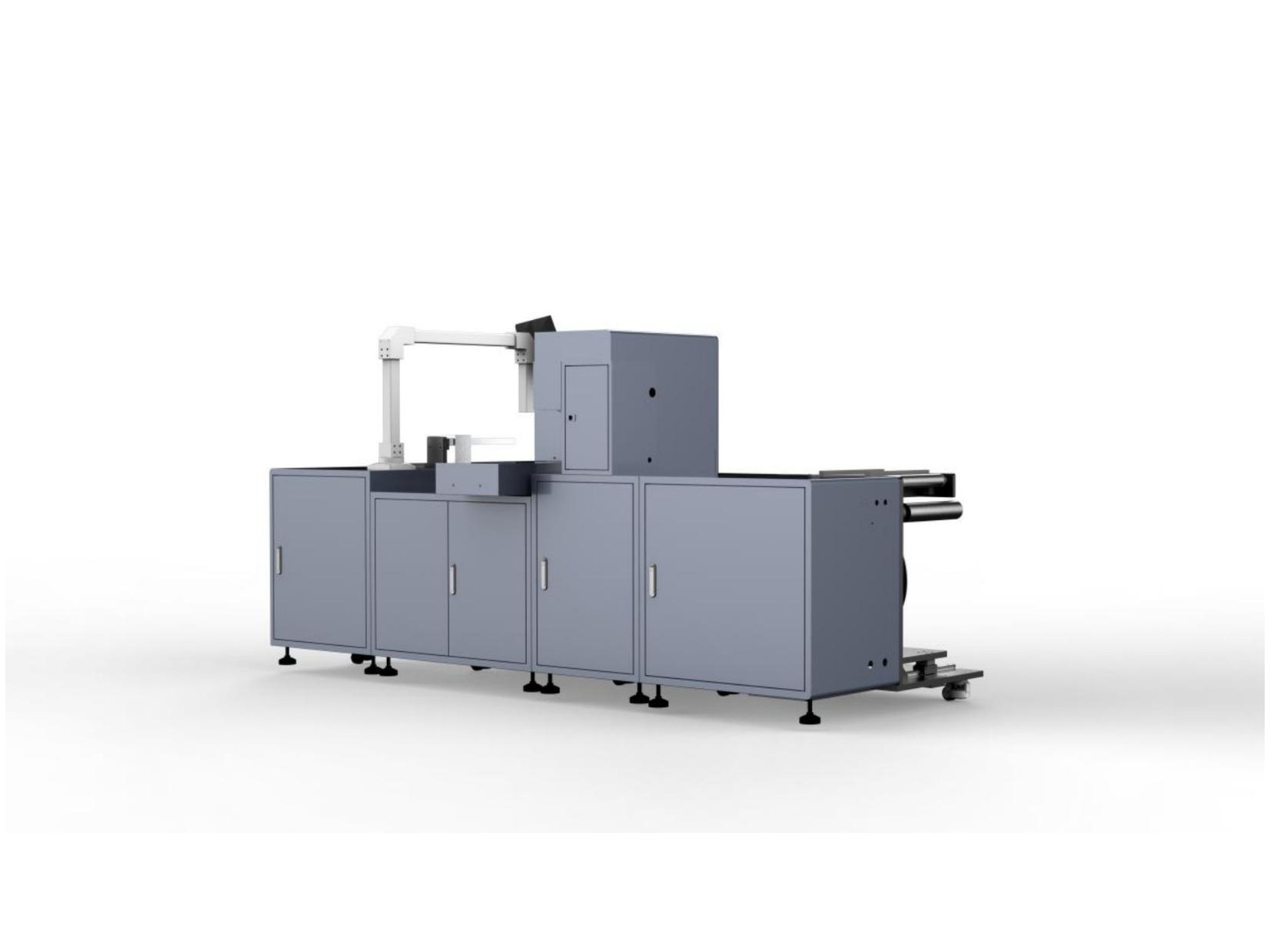

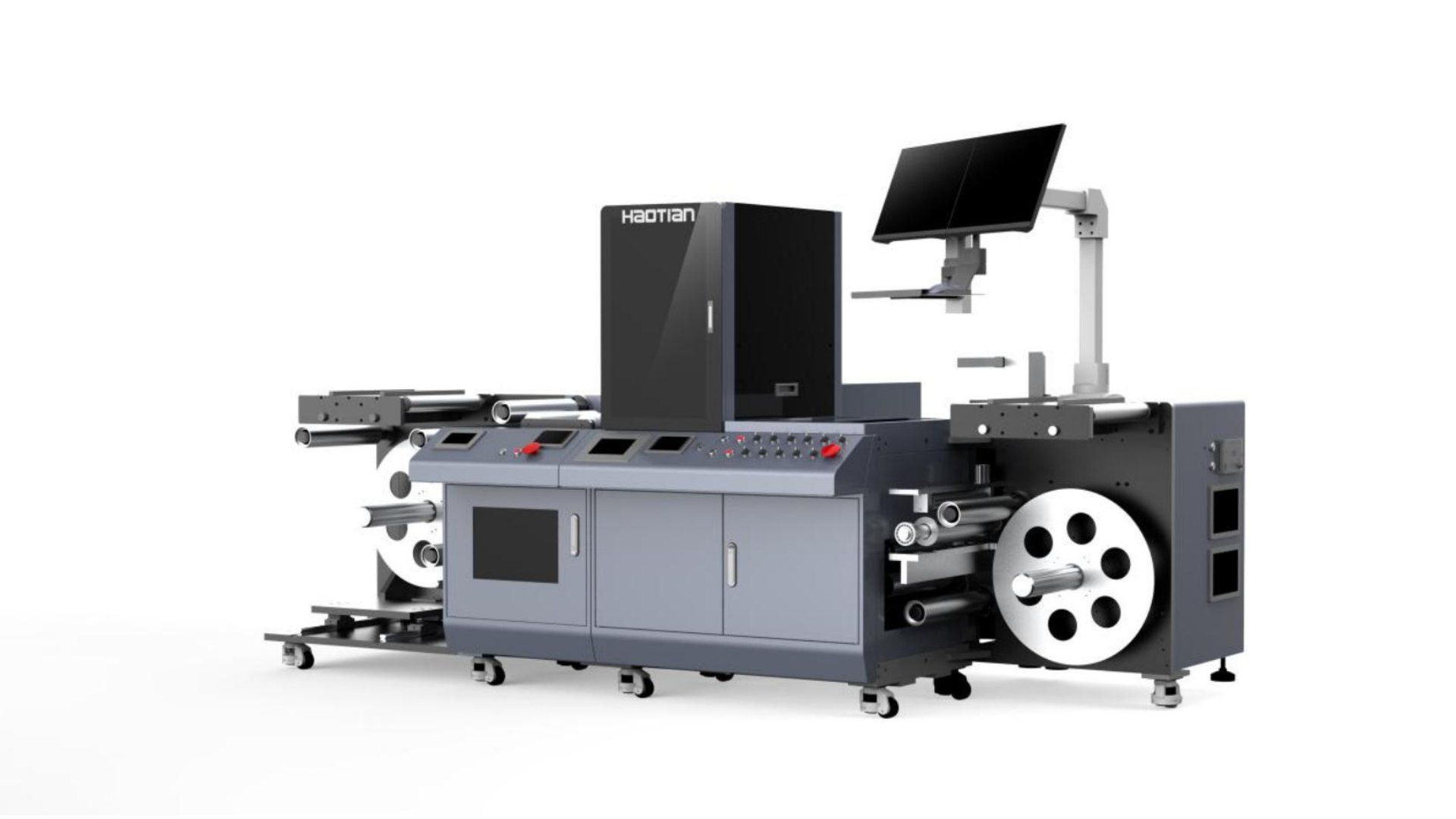

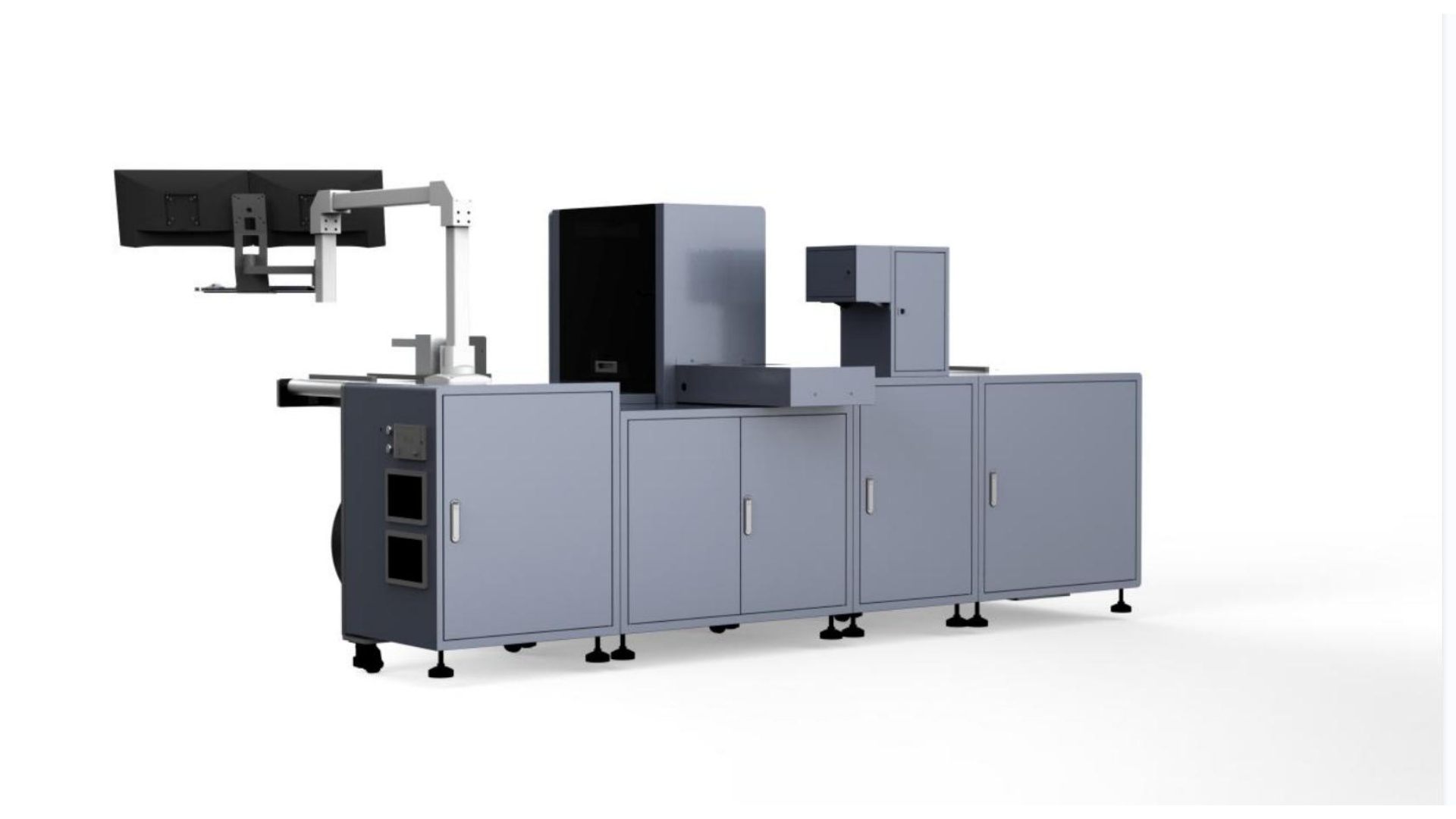

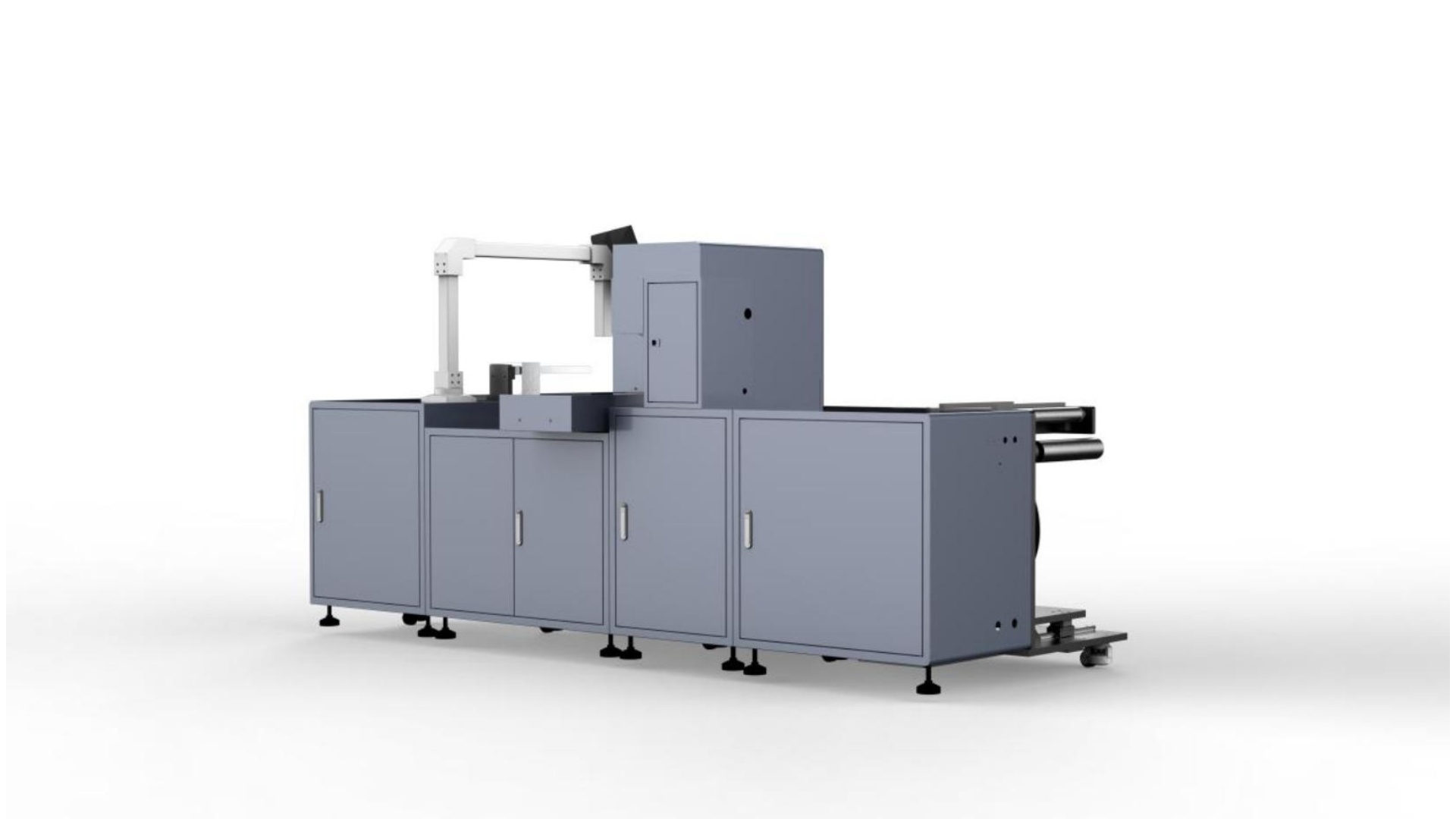

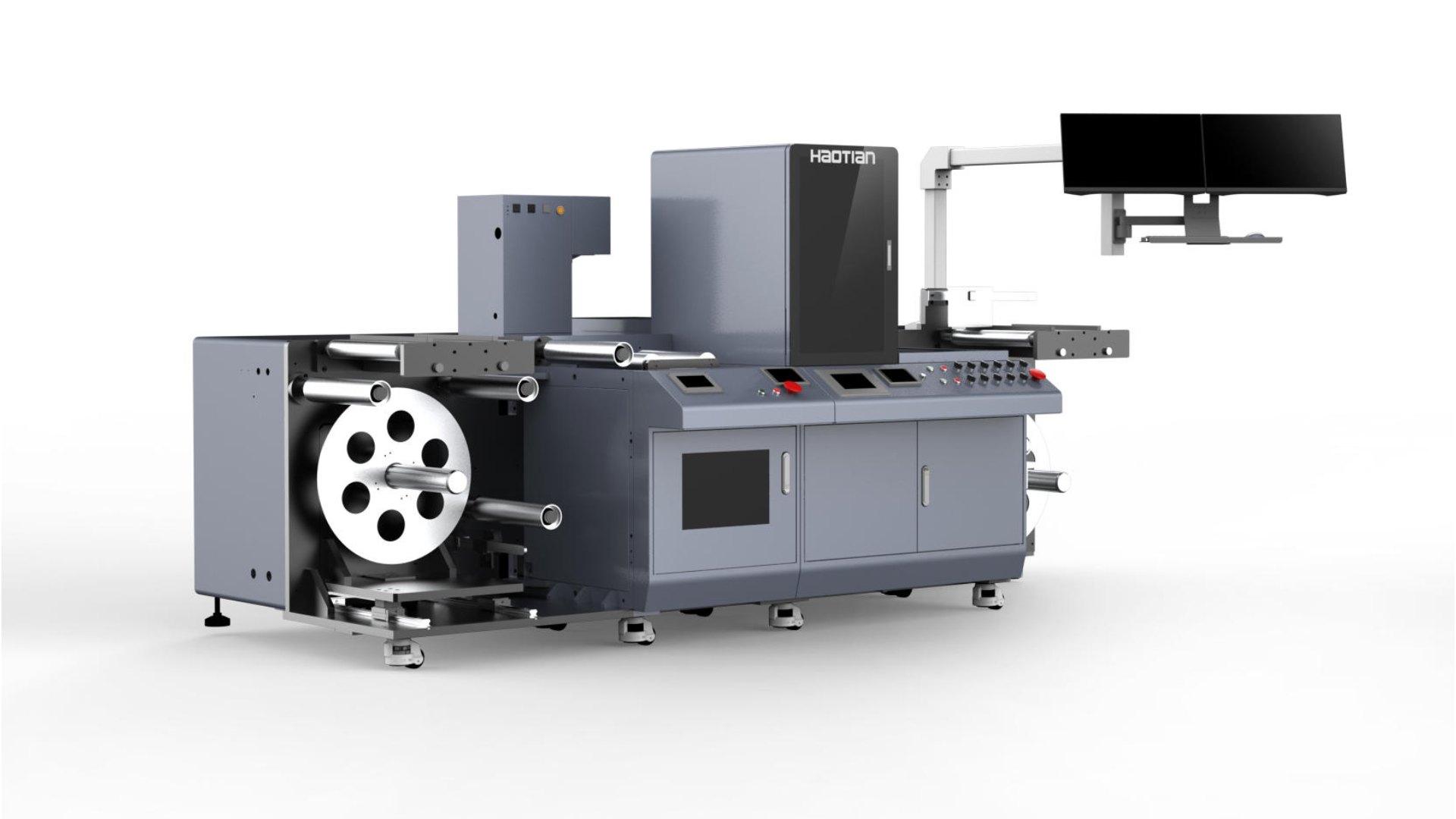

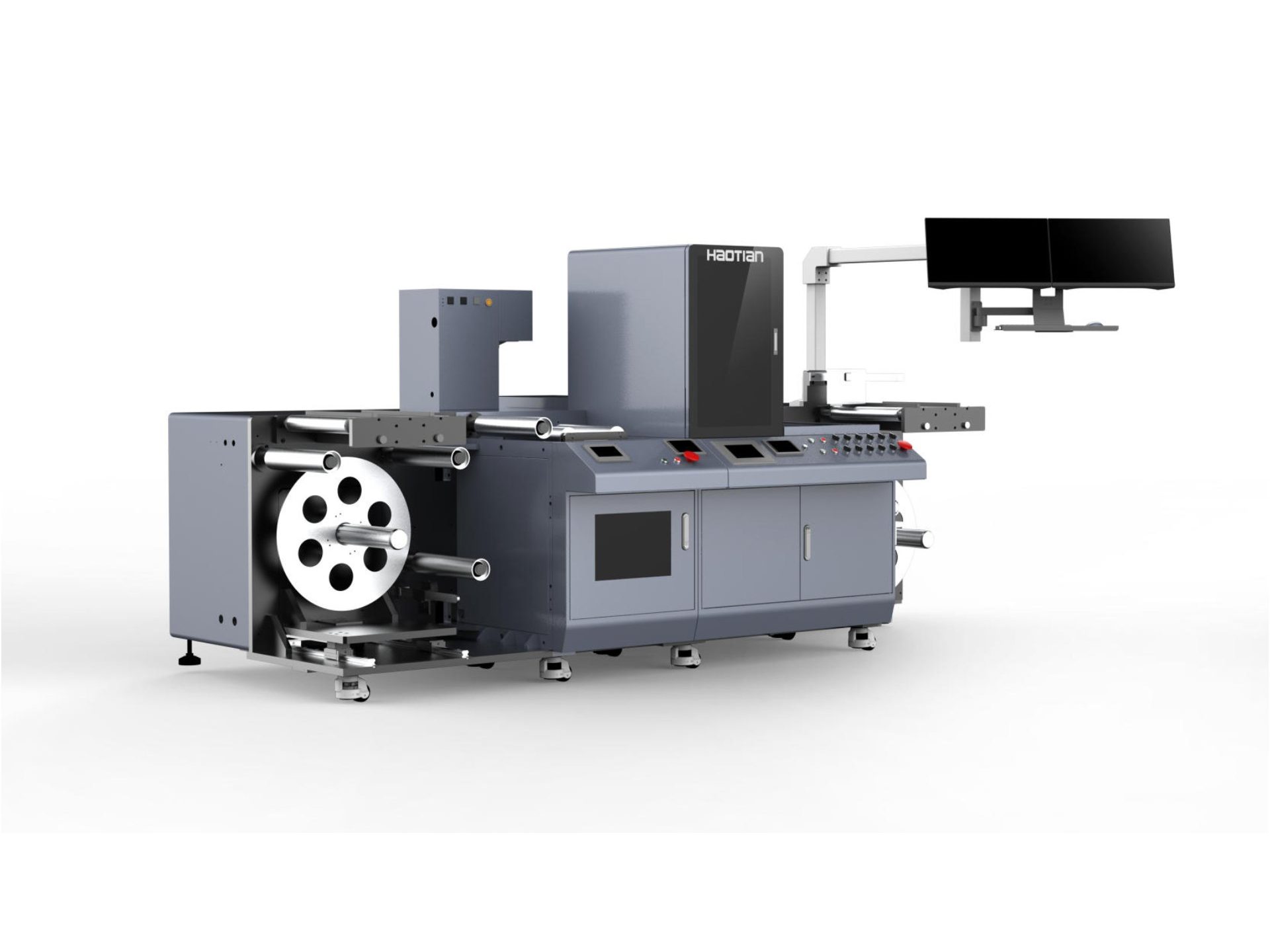

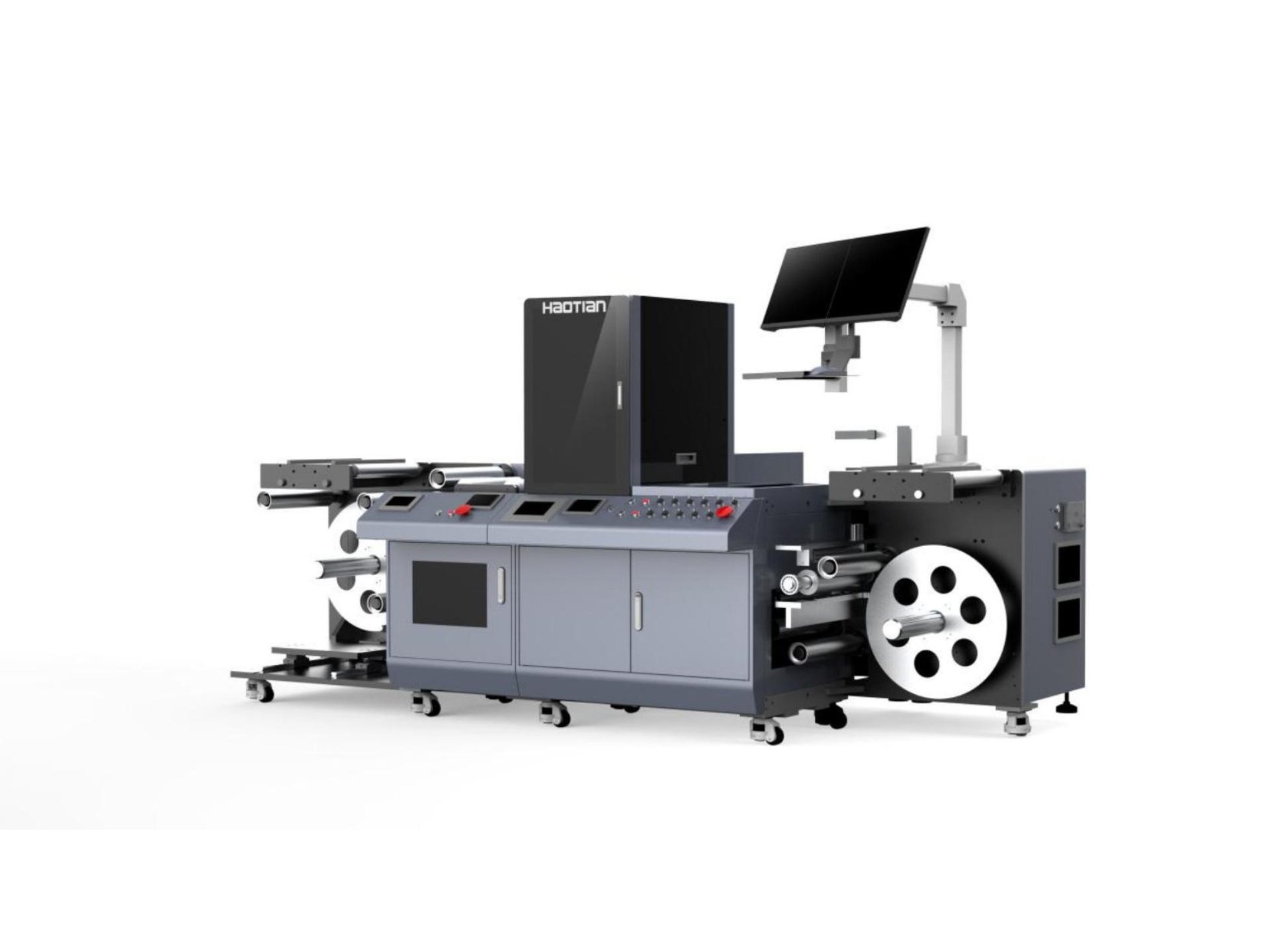

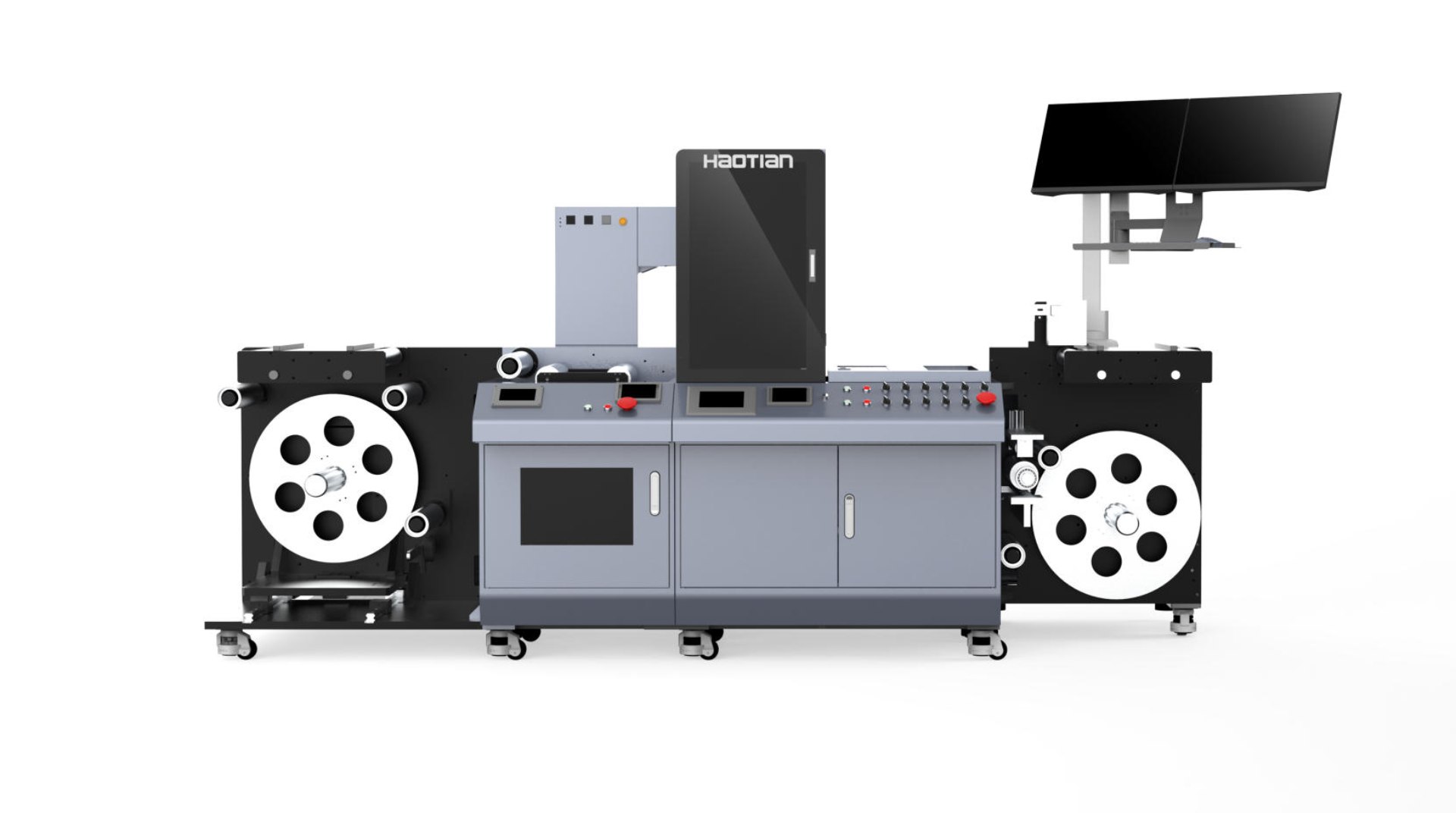

HGP-Varnish Machine for High-Precision Inkjet Printing Quality

The High-speed HGP Varnish Machine is a digital varnishing and printing solution designed for high-speed, high-precision label and packaging production. Equipped with advanced on-demand piezoelectric nozzles and intelligent ink supply control, it delivers outstanding image clarity, smooth varnish effects, and reliable performance across a wide range of materials. Its modular design supports flexible production and seamless integration into existing workflows.

Order(MOQ) :
1
Product Origin :
Baiyun District, Guangzhou City, Guangdong Provinc
Weight :
4200kg

Product Details

The HGP-Varnish Machine for Digital Label Printing adopts world-leading industrial piezoelectric printheads with 600x600 dpi precision and a printing speed of up to 50 meters per minute. It supports both transparent and non-transparent materials without the need for plate-making, enabling instant printing from a single sheet. With its advanced Variable Data Printing (VDP) technology, it can easily handle unique barcodes, QR codes, and serial numbers to meet the growing demand for anti-counterfeiting and traceability in modern packaging. Equipped with a mature cyclic ink supply system, independent pressure control, and multi-stage filtration, the machine ensures stable ink delivery and effectively prevents bubbles or pinholes in varnish coatings. Its integrated corona treatment, dust, and static removal units enhance ink adhesion and overall surface quality. Combined with a user-friendly layout software and a built-in varnishing module, the HGP-Varnish Machine delivers high-speed, precise, and reliable production performance across a wide range of printing and labeling applications.

FEATURES

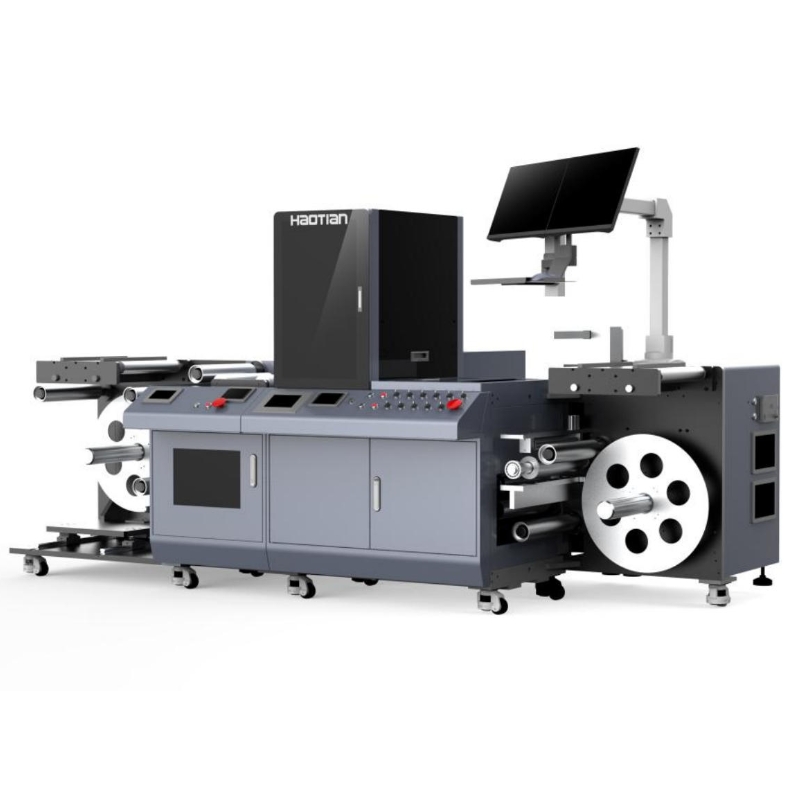

High-speed industrial UV inkjet printing machine for PVC PET BOPP materials variable data printing

1.Stable Ink Circulation System: Cyclic ink supply with positive/negative pressure and multi-stage filtration ensures continuous and bubble-free ink flow.

2.Advanced Ink Degassing Technology: Removes microbubbles from ink, achieving smooth and uniform varnish effects.

3.Built-in Corona Device: Enhances surface tension for better ink adhesion and color consistency.

4.Dust & Static Removal Unit: Eliminates contaminants to maintain high-definition printing quality.

5.Modular Design: Easy maintenance and flexible configuration for different production needs.

6.High Compatibility: Suitable for various printing substrates and digital printing lines.

7.Reliable Performance: Designed for long-term, high-speed, and high-precision production environments.

Specification

Printing Technology	Single pass UV inkjet technology, DOD industrial grade nozzle	Input Air Source	0.6~ 0.8 MP
Resolving Power	DPI 600 x 600dpi/600 x 1200dpi/ 600 x 2400dpi	Input Power Supply	Three phase 380VAC 20/60Hz 10kw
Printing Speed (m/min)	5-50 m/min	Accept File Format	Common formats for files such as PDF/JPEG/TIFF
Material Type	Coated or Uncoated Paper, Transparent or Non Transparent Media, etc	Computer Hardware	CPU HTS-PRIME Z370-A Graphics card HTS-GTX1070-O8G
Roll Diameter for Receiving and Discharging Materials	Maximum Diameter 650mm	Thickness of Substrate	0.01-0.8mm Roll Packaging Material
Paper Feed Width	220mm/350mm (Maximum)	Image Processor	RIP Bundling Allows for Synchronized Printing and RIP of Big Data Archives, Saving RIP Time
Actual Printing Width	216mm/324mm (Maximum)	Drying Method	Composed of nine sets of LEDs and one set of UV lamps with total curing, combined with water-cooled rollers, to ensure that the material does not deform during final curing, and can dry easily deformed materials such as PVC, PET aluminum foil, etc
Ink Type	LED Cured UV Ink	Drying Method
Printing Color Group	Nine Colors	Temperature Range	26 ~ 28°C
Machine Dimensions *(LWH)*	Approximately 6850mm x 1850mm x 2000mm	Ink Storage Temperature	16 ~ 32°C
Mechanical Weight	Approximately 4.2 tons	Humidity Range	40-65%
