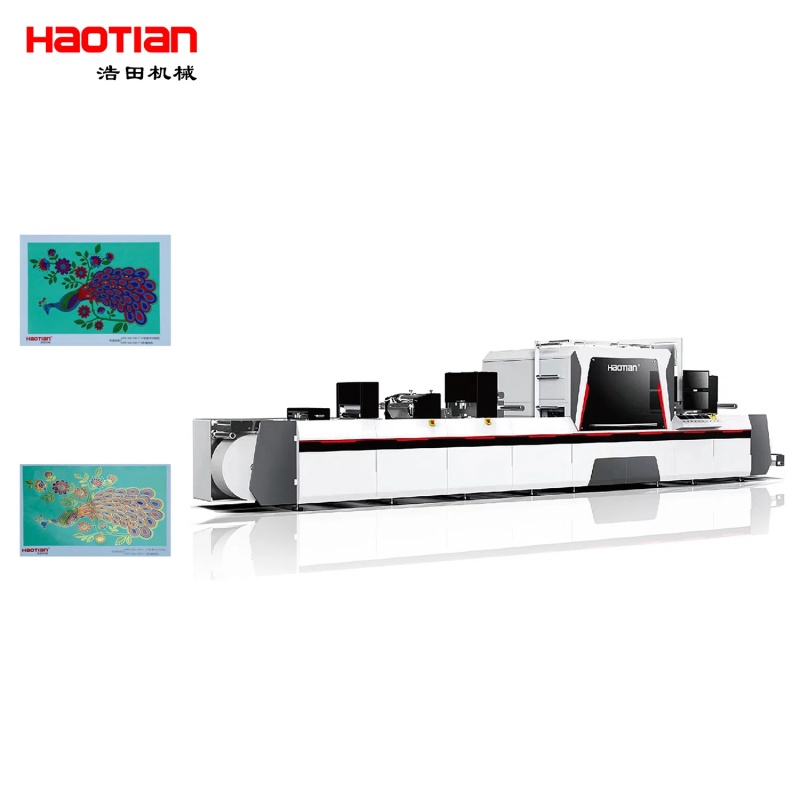

Name: Full Color 9 Color UV Digital Roll to Roll Printing Machine HGP-330-9C
Availability: InStock

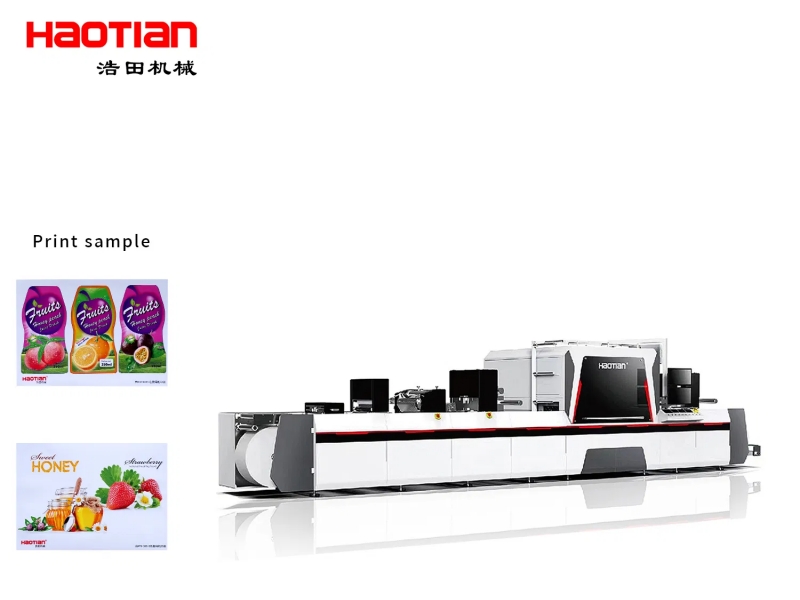

Full Color 9 Color UV Digital Roll to Roll Printing Machine HGP-330-9C

The 9 Color UV Printing Machine provides high-speed, full-color digital printing on various materials, including paper, PVC, PET, BOPP, and metallic foils. Equipped with advanced ink circulation, automatic nozzle cleaning, and tension control, it ensures stable performance and precise output for labels, packaging, and small batch customization.

Item No :
HGP-330-9C
Order(MOQ) :
1
Product Origin :
Baiyun District, Guangzhou City, Guangdong Provinc
Weight :
4200kg

Product Details

The High Speed UV Printing Machine delivers efficient and precise digital printing for various materials, including paper, PVC, PET, BOPP, and metallic foils. Its advanced UV inkjet system provides accurate full-color results on both transparent and opaque surfaces. With automatic nozzle cleaning, intelligent ink circulation, and dual servo tension control, it ensures stable performance and consistent output. Suitable for small batch production, variable data printing, and customized labels, this printer supports reliable and flexible printing operations.

FEATURES

Industrial Single Pass UV Printing Machine

Wide Format Printing Capability – Supports larger roll widths for flexible production on bigger materials.

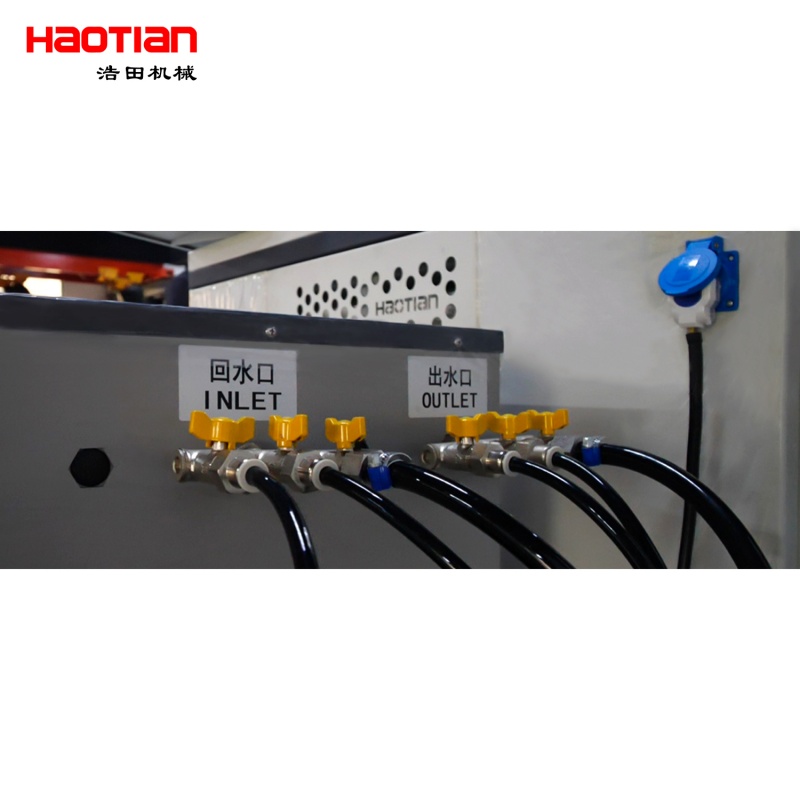

Integrated Water Cooling System – Protects heat-sensitive films and maintains stable substrate dimensions during printing.

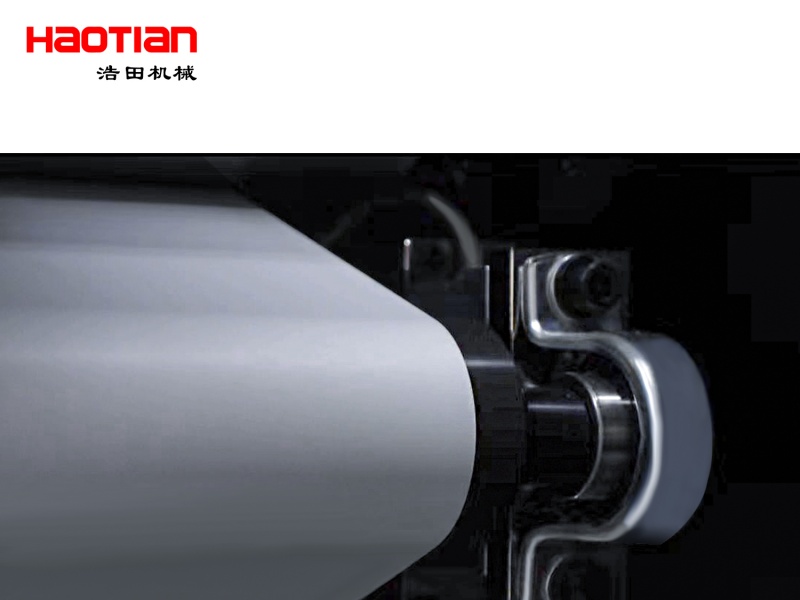

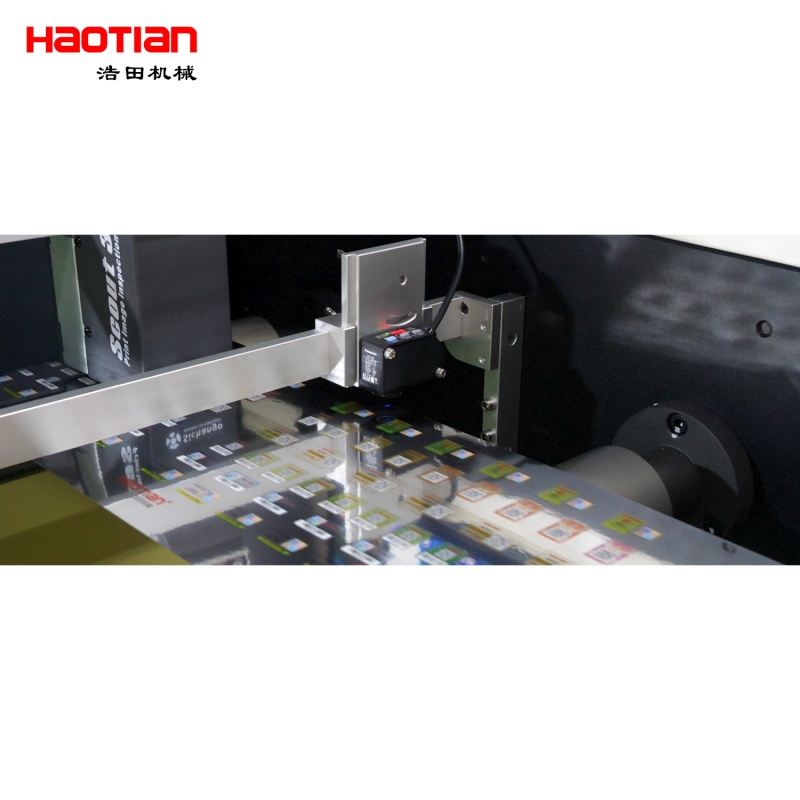

Closed-Loop Material Feeding – Ensures smooth, consistent material feed and accurate registration throughout production.

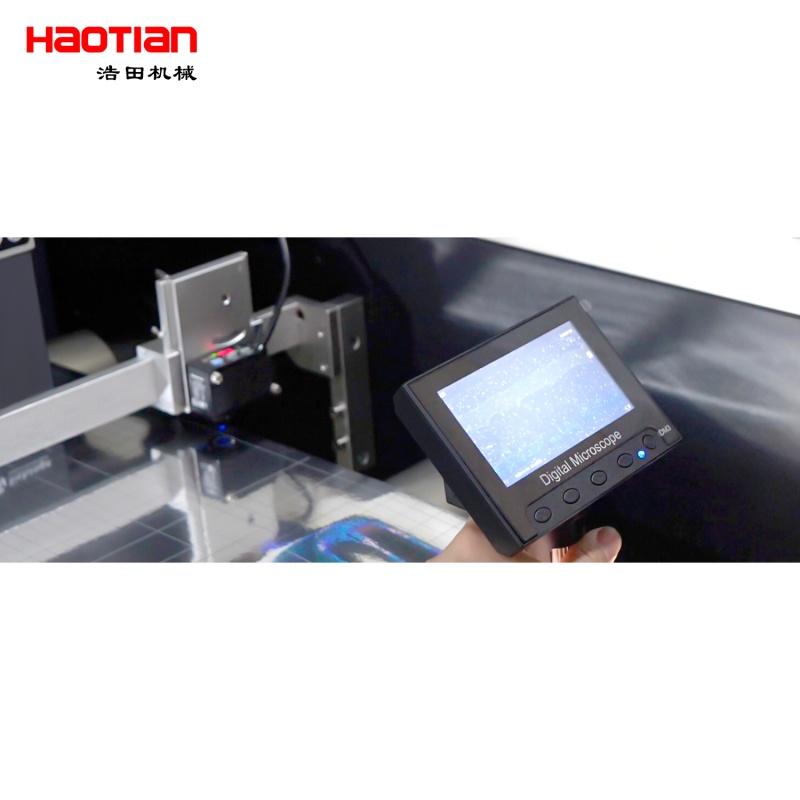

Professional Color Calibration Tools – Standardized color calibration process for consistent color matching across multiple jobs.

User-Friendly Touch Interface – 21-inch screen with intuitive controls simplifies operation and reduces setup time.

Modular Ink Storage – Large-capacity ink tanks with segmented filtration provide uninterrupted printing for long runs.

Advanced RIP Software Integration – Allows synchronized image processing, reducing RIP time and improving workflow efficiency.

Specification

Printing Technology	Single pass UV inkjet technology, DOD industrial grade nozzle	Input Air Source	0.6~ 0.8 MP
Resolving Power	DPI 600 x 600dpi/600 x 1200dpi/ 600 x 2400dpi	Input Power Supply	Three phase 380VAC 20/60Hz 10kw
Printing Speed (m/min)	5-50 m/min	Accept File Format	Common formats for files such as PDF/JPEG/TIFF
Material Type	Coated or Uncoated Paper, Transparent or Non Transparent Media, etc	Computer Hardware	CPU HTS-PRIME Z370-A Graphics card HTS-GTX1070-O8G
Roll Diameter for Receiving and Discharging Materials	Maximum Diameter 650mm	Thickness of Substrate	0.01-0.8mm Roll Packaging Material
Paper Feed Width	220mm/350mm (Maximum)	Image Processor	RIP Bundling Allows for Synchronized Printing and RIP of Big Data Archives, Saving RIP Time
Actual Printing Width	216mm/324mm (Maximum)	Drying Method	Composed of nine sets of LEDs and one set of UV lamps with total curing, combined with water-cooled rollers, to ensure that the material does not deform during final curing, and can dry easily deformed materials such as PVC, PET aluminum foil, etc
Ink Type	LED Cured UV Ink	Drying Method
Printing Color Group	Nine Colors	Temperature Range	26 ~ 28°C
Machine Dimensions *(LWH)*	Approximately 6850mm x 1850mm x 2000mm	Ink Storage Temperature	16 ~ 32°C
Mechanical Weight	Approximately 4.2 tons	Humidity Range	40-65%
