Name: High Speed 7 Color UV Inkjet Digital Printing Machine HGP-330-7C
Availability: InStock

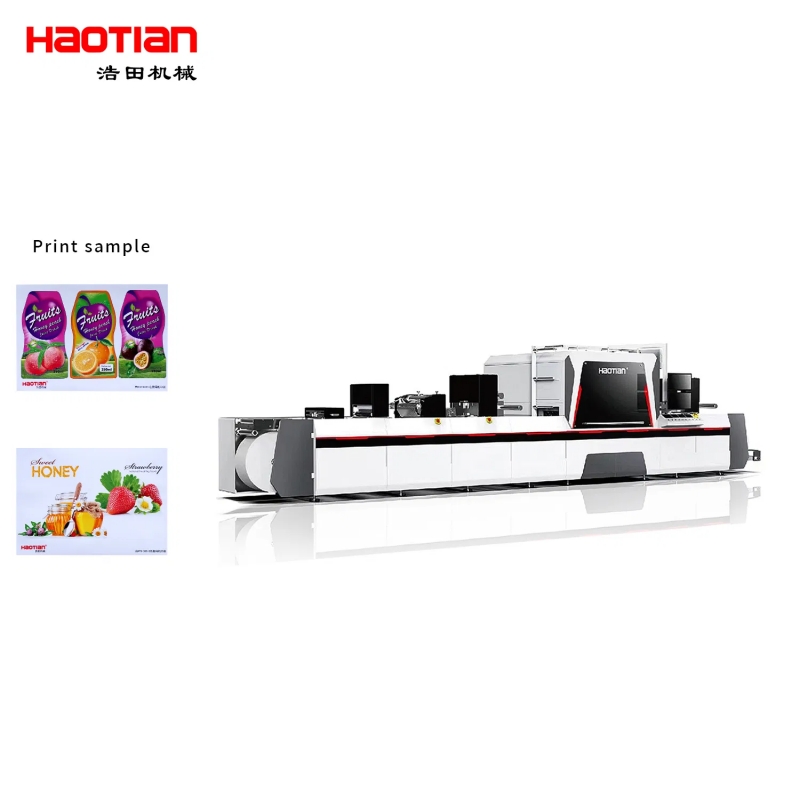

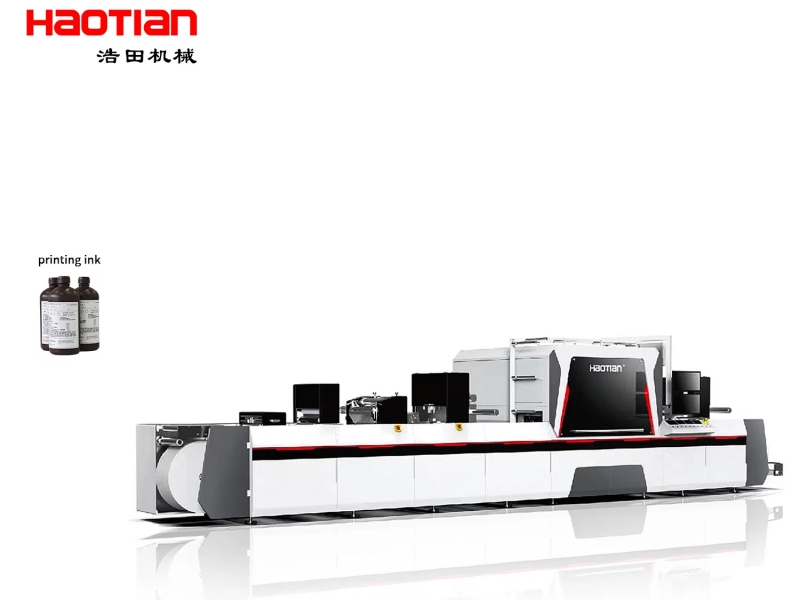

High Speed 7 Color UV Inkjet Digital Printing Machine HGP-330-7C

The UV inkjet printing machine delivers reliable performance for both small and large production runs. It supports precise printing on different substrates, including paperboard, plastics, and coated surfaces. With stable operation and consistent output, it is designed to meet the needs of manufacturers seeking efficiency and flexibility.

Item No :
HGP-330-7C
Order(MOQ) :
1
Product Origin :
Baiyun District, Guangzhou City, Guangdong Provinc
Weight :
4200kg

Product Details

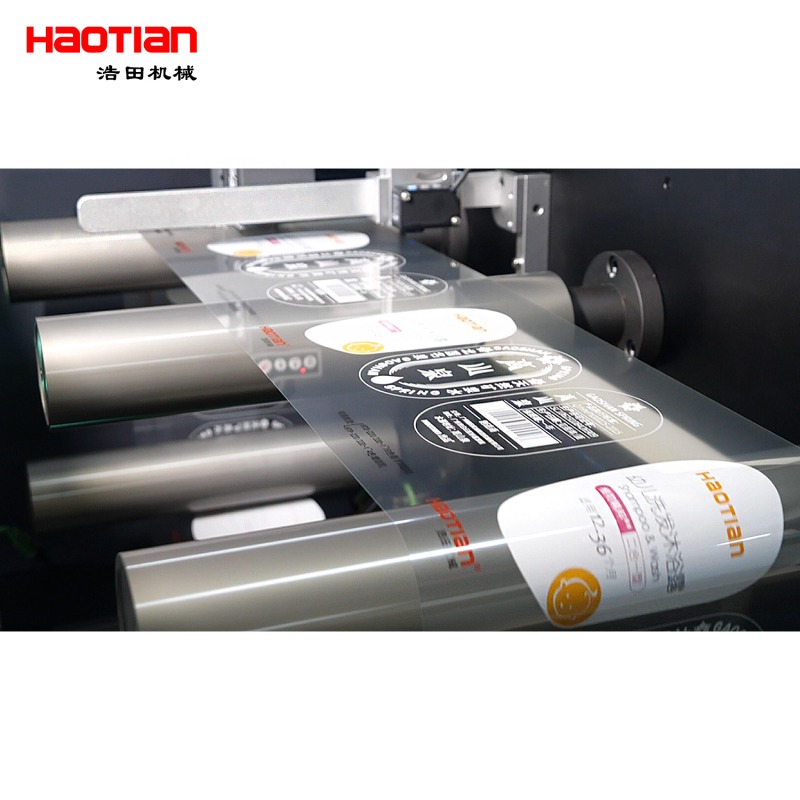

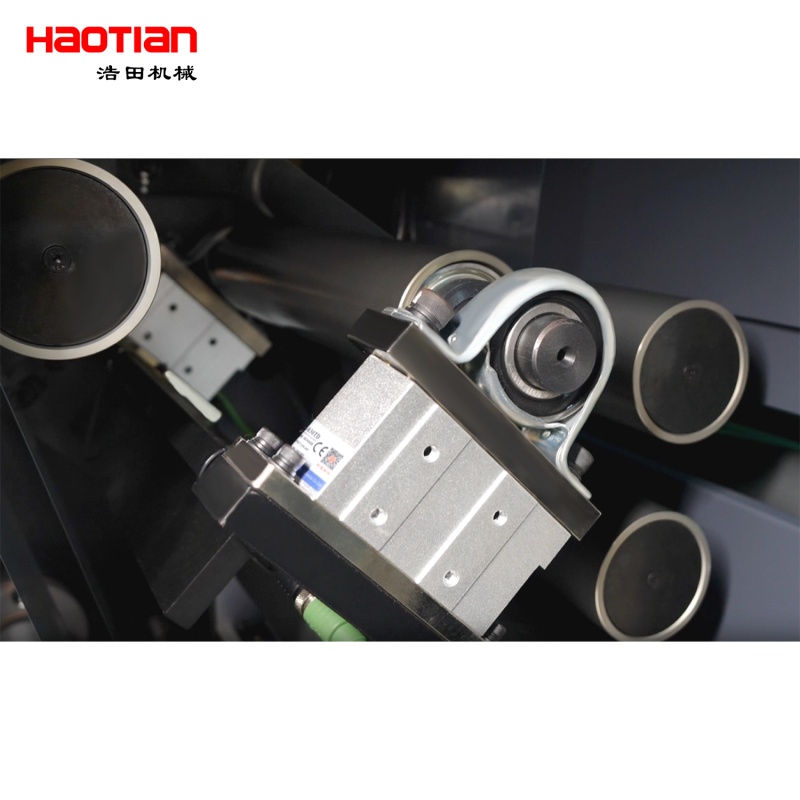

The 7 Color UV Printer is designed for efficient and accurate digital printing across a wide range of materials, including paper, PVC, PET, PE, BOPP, and metallic foils. With single pass UV inkjet technology and resolutions up to 600 x 2400 dpi, it delivers consistent full-color results on both transparent and opaque substrates. The machine features automatic nozzle cleaning, intelligent ink circulation, dual servo tension control, and variable data printing, making it suitable for small to medium batch production, customized labels, and packaging applications.

FEATURES

High Resolution Industrial UV Printing Machine

Reduced Production Cost – Low ink consumption and affordable spare parts help lower overall printing expenses.

Short Delivery Time – No plate-making required, enabling fast order processing and quicker turnaround for urgent projects.

Flexible Order Handling – Easily switches between small and large batch jobs, suitable for diverse customer demands.

Enhanced Print Quality – Achieves stable color consistency and clear image output across various media.

Reliable Operation – Automatic cleaning and dust removal systems reduce downtime and minimize maintenance work.

Eco-Friendly Printing – VOC-free UV inks ensure safety and meet environmental standards for global markets.

Support for Variable Data – Ideal for personalized printing, traceability codes, and anti-counterfeiting labels.

Specification

Printing Technology	Single pass UV inkjet technology, DOD industrial grade nozzle	Input Air Source	0.6~ 0.8 MP
Resolving Power	DPI 600 x 600dpi/600 x 1200dpi/ 600 x 2400dpi	Input Power Supply	Three phase 380VAC 20/60Hz 10kw
Printing Speed (m/min)	5-50 m/min	Accept File Format	Common formats for files such as PDF/JPEG/TIFF
Material Type	Coated or Uncoated Paper, Transparent or Non Transparent Media, etc	Computer Hardware	CPU HTS-PRIME Z370-A Graphics card HTS-GTX1070-O8G
Roll Diameter for Receiving and Discharging Materials	Maximum Diameter 650mm	Thickness of Substrate	0.01-0.8mm Roll Packaging Material
Paper Feed Width	220mm/350mm (Maximum)	Image Processor	RIP Bundling Allows for Synchronized Printing and RIP of Big Data Archives, Saving RIP Time
Actual Printing Width	216mm/324mm (Maximum)	Drying Method	Composed of nine sets of LEDs and one set of UV lamps with total curing, combined with water-cooled rollers, to ensure that the material does not deform during final curing, and can dry easily deformed materials such as PVC, PET aluminum foil, etc
Ink Type	LED Cured UV Ink	Drying Method
Printing Color Group	Seven Colors	Temperature Range	26 ~ 28°C
Machine Dimensions *(LWH)*	Approximately 6850mm x 1850mm x 2000mm	Ink Storage Temperature	16 ~ 32°C
Mechanical Weight	Approximately 4.2 tons	Humidity Range	40-65%
