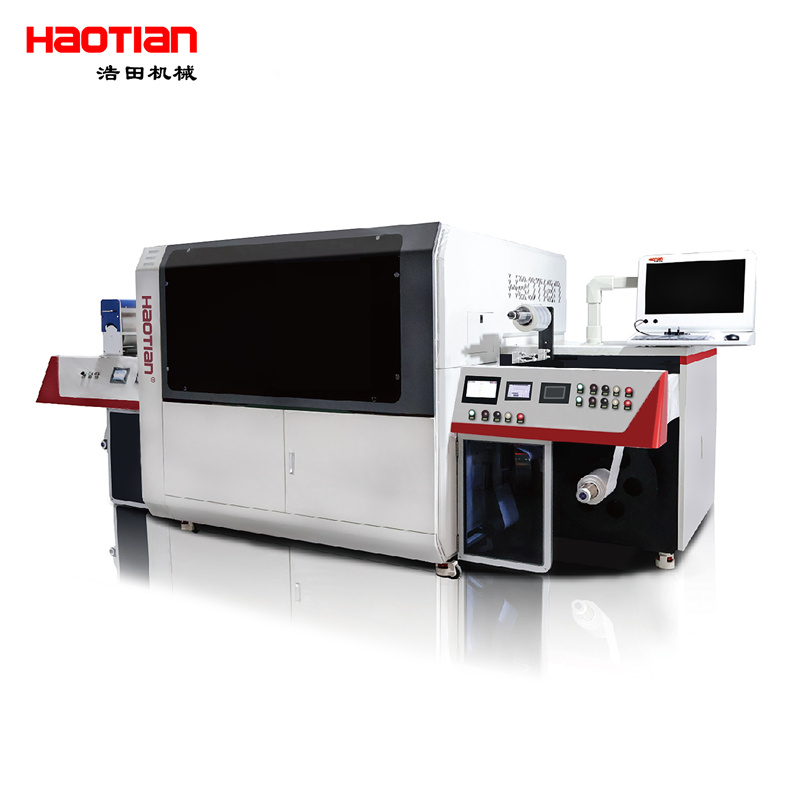

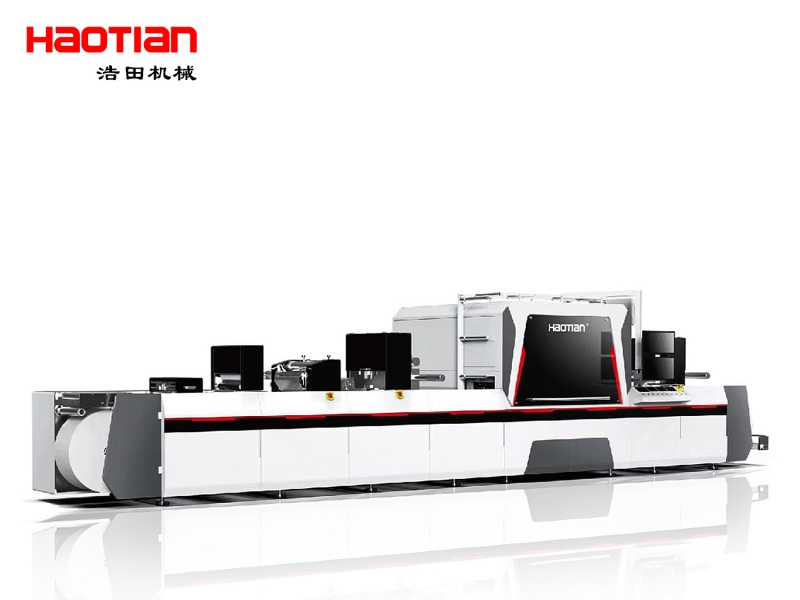

Name: Max 9 Color Single Pass UV Inkjet Digital Printing Machine HGP-220-9C
Availability: InStock

Max 9 Color Single Pass UV Inkjet Digital Printing Machine HGP-220-9C

The 9 Color UV Inkjet Printer delivers high-speed, high-precision printing for labels and packaging. It supports a wide range of materials, including paper, PVC, PET, BOPP, and metallic foils, without pre-coating. Equipped with CMYK+W plus three additional colors, it achieves vibrant full-color printing on both transparent and opaque substrates.

Item No :
HTS-220-9C
Order(MOQ) :
1
Product Origin :
Baiyun District, Guangzhou City, Guangdong Provinc
Weight :
4200kg

Product Details

The High-Speed 9 Color UV Printer is designed for industrial-grade, single-pass UV inkjet printing, delivering exceptional precision on a wide variety of materials, including coated and uncoated paper, PET, PVC, BOPP, and metallic foils. With a nine-color ink system and high-resolution capability up to 600 x 2400 dpi, it produces vivid, accurate full-color prints on both transparent and opaque substrates. Equipped with LED-cured UV inks, water-cooled rollers, and a synchronized RIP image processor, it ensures stable operation, minimal material deformation, and efficient drying.

FEATURES

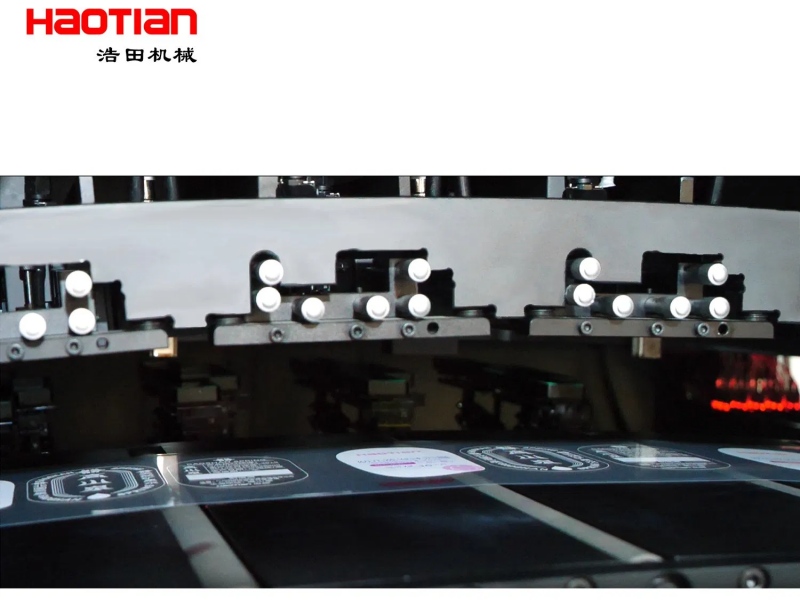

1.High-Precision Printing – Uses industrial on-demand piezoelectric nozzles with 600x600 dpi resolution, capable of printing up to 50m/min, suitable for high-quality full-color prints.

2.Material Versatility – Supports a wide range of materials including paper, PVC, PET, PE, BOPP, and metallic foils without pre-coating, reducing processing steps and cost.

3.Variable Data Capability – Enables printing of one-dimensional codes, two-dimensional codes, serial numbers, and dot matrix codes, supporting anti-counterfeiting and traceability requirements.

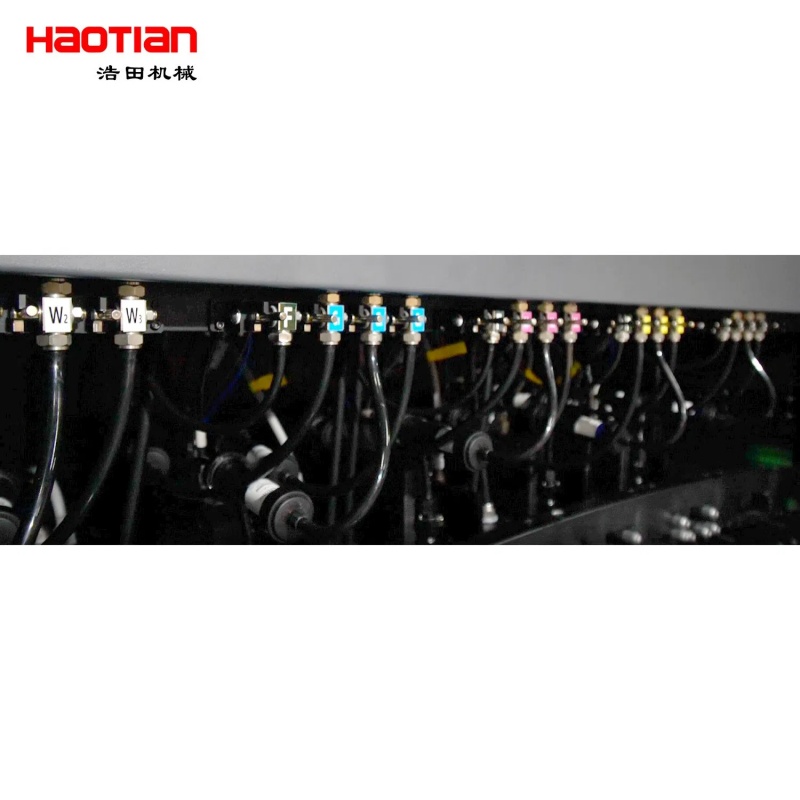

4.Stable Operation and Ink Management – Equipped with automatic nozzle cleaning, dual servo tension control, circulating ink supply system, and environmental UV inks to ensure consistent performance and accurate printing results.

Specification

Printing Technology	Single pass UV inkjet technology, DOD industrial grade nozzle	Input Air Source	0.6~ 0.8 MP
Resolving Power	DPI 600 x 600dpi/600 x 1200dpi/ 600 x 2400dpi	Input Power Supply	Three phase 380VAC 20/60Hz 10kw
Printing Speed (m/min)	5-50 m/min	Accept File Format	Common formats for files such as PDF/JPEG/TIFF
Material Type	Coated or Uncoated Paper, Transparent or Non Transparent Media, etc	Computer Hardware	CPU HTS-PRIME Z370-A Graphics card HTS-GTX1070-O8G
Roll Diameter for Receiving and Discharging Materials	Maximum Diameter 650mm	Thickness of Substrate	0.01-0.8mm Roll Packaging Material
Paper Feed Width	220mm/350mm (Maximum)	Image Processor	RIP Bundling Allows for Synchronized Printing and RIP of Big Data Archives, Saving RIP Time
Actual Printing Width	216mm/324mm (Maximum)	Drying Method	Composed of nine sets of LEDs and one set of UV lamps with total curing, combined with water-cooled rollers, to ensure that the material does not deform during final curing, and can dry easily deformed materials such as PVC, PET aluminum foil, etc
Ink Type	LED Cured UV Ink	Drying Method
Printing Color Group	Nine Colors	Temperature Range	26 ~ 28°C
Machine Dimensions *(LWH)*	Approximately 6850mm x 1850mm x 2000mm	Ink Storage Temperature	16 ~ 32°C
Mechanical Weight	Approximately 4.2 tons	Humidity Range	40-65%
