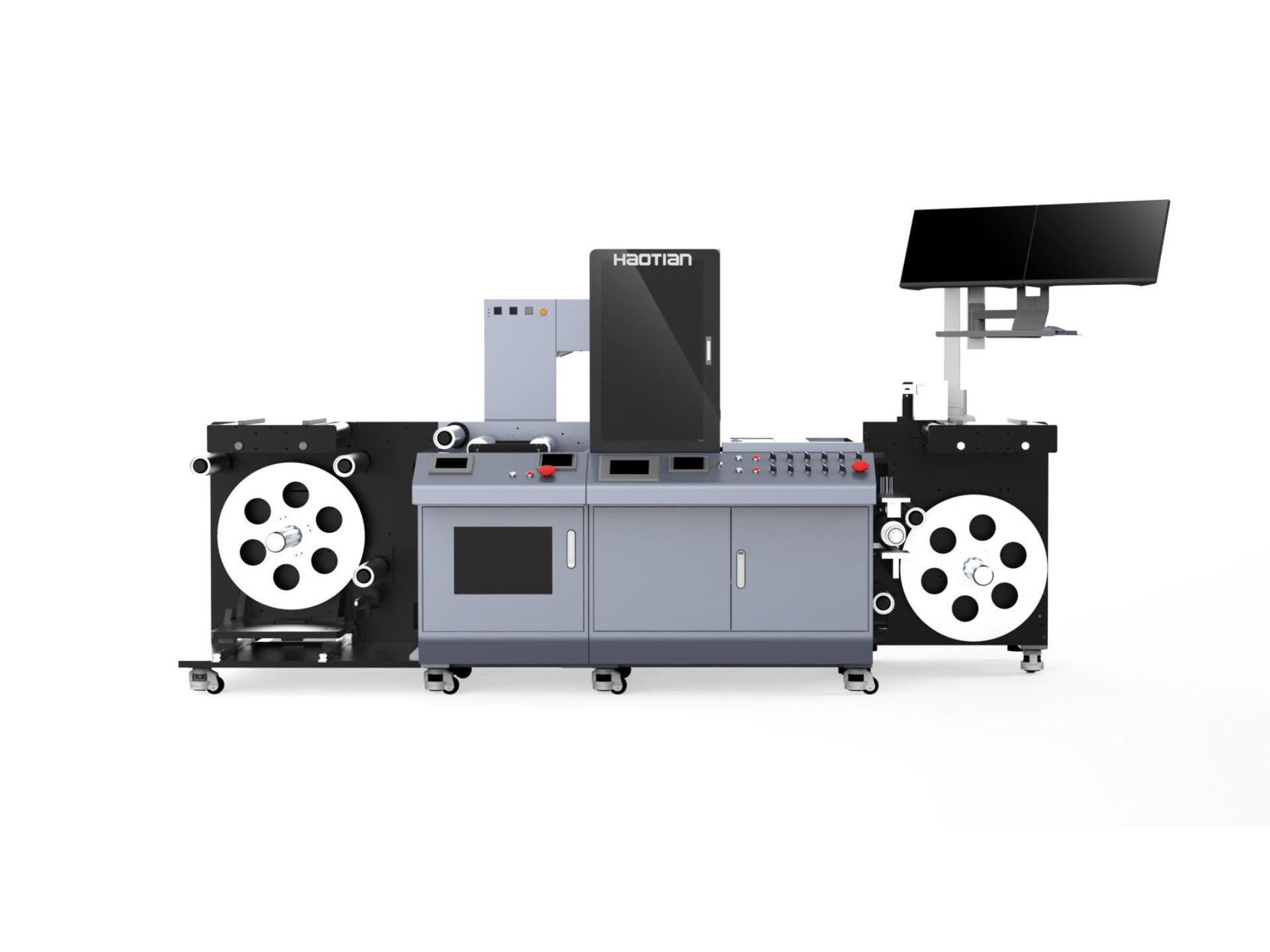

Name: Digital Gilding & Varnish Label Printing Machine with Efficiency Enhancer HGP-330
Availability: InStock

Digital Gilding & Varnish Label Printing Machine with Efficiency Enhancer HGP-330

1. It adopts the world's most advanced high-speed and high-precision industrial on-demand piezoelectric nozzles, with an accuracy of 600x600dpi, achieving high-quality portraits. The printing speed can reach up to 50m/min, and the nozzle has a long service life.

2. Easily achieve full-color printing on both transparent and non-transparent materials without the need for plate making, starting from one sheet.

3. Variable Data Print system, easily realize the printing of variable data such as one-dimensional code, two-dimensional code, serial number, dot matrix code, etc., achieve one code per mark, and meet the requirements of anti-counterfeiting and traceability orders.

4. A friendly, simple and easy-to-use layout output software enables quick changes to order jobs without waiting for tasks, thereby enhancing work efficiency.

Item No :
HGP-330
Weight :
About 3.2 tons

Product Details

The HGP-330 is a state-of-the-art digital label printing solution designed for high-speed, high-precision production. Equipped with advanced piezoelectric nozzles, it delivers exceptional print quality at resolutions up to 600x600 dpi, while achieving printing speeds of up to 50 m/min. This machine is ideal for businesses requiring flexible, full-color label printing with enhanced efficiency and variable data capabilities.

PEFORMANCE AND FEATURES

High-Speed, High-Precision Printing

Utilizes the world's most advanced on-demand piezoelectric nozzles.
Achieves crisp, high-quality images and portraits at 600x600 dpi.
Long-lasting nozzles ensure reliability and reduced maintenance.

Versatile Material Compatibility

Supports both transparent and non-transparent substrates without the need for plate-making.
Capable of starting production from a single sheet, enabling small-batch and custom orders.

Variable Data Printing

Easily prints variable elements such as 1D/2D barcodes, serial numbers, dot matrix codes, and unique identifiers.
Meets anti-counterfeiting and traceability requirements for each label.

User-Friendly Software Interface

Intuitive layout and job management software allows quick job changes.
Reduces waiting time, maximizes workflow efficiency, and simplifies operation.

Enhanced Gilding & Varnish Capabilities

Integrated gilding and varnishing modules for premium label finishing.
Delivers a professional appearance with smooth, high-gloss effects.

Efficiency Enhancer

Optimized for high productivity, capable of handling multiple jobs and large-scale printing with minimal downtime.

Industry application

1.Suitable for small batches label order and has the feature of multi-varieties printing in high speed.

2.Suitable for various materials,such as light membrane,Dim membrane,and Gold stamping,Silver stamping,laser,Varnish etc

3.Suitable for all kind of personalized customization customization,new product development and market business.

Specification

Printing Technology	UV inkjet technology, KYOCERA/EPSON/XAAR printheads	Air Source	0.6 ~ 0.8MP
Resolution	DPI 600x600dpi or 600x1200dpi DPl/rate 1200dpi 25m/min,2400dpi 12.5m/min	Power Supply	3 Phase + N + PE 380VAC 50/60 Hz
Printing Speed (m/min)	5-50 m/min *The maximum printing speed may vary by complexity of printing file	Supported File Formats	PDF，JPEG
Material Type	Coated or Uncoated Paper, Transparent or Non-Transparent Film	Computer Hardware	Mainboard: HTS-Prime Z370-A. Graphics card: GTX1070-O8G
Winder Roll Diameter	Maximum 650 mm	Printing Substrate Thickness	0.04 -0.8mm For Roll to Roll material
Web Width	250 mm/350 mm（Maximum）	Image Processor	RIP Budling: Synchronizes printing and RIP for large data files, saving work time.
Actual Printing Width	216 mm/324 mm（Maximum）	Drying Method	RIP bundle.and synchronous Printing and RIP for big data files are supported saving Rip time.
Ink Type	UV/LED Curing lnk	Drying Method
Printing Color Group	1-2 Unit, Color: Varnish Optional Flexo, Lamination Unit	Temperature Range	18 ~ 30°C
Mechanical dimension *(LWH)*	Approximately 4510mm X 2410mm X 2680mm	Ink Storage Temperature	16 ~ 32°C
Machine Weight	About 3.2 tons	Humidity Range	40 ~ 60°C
